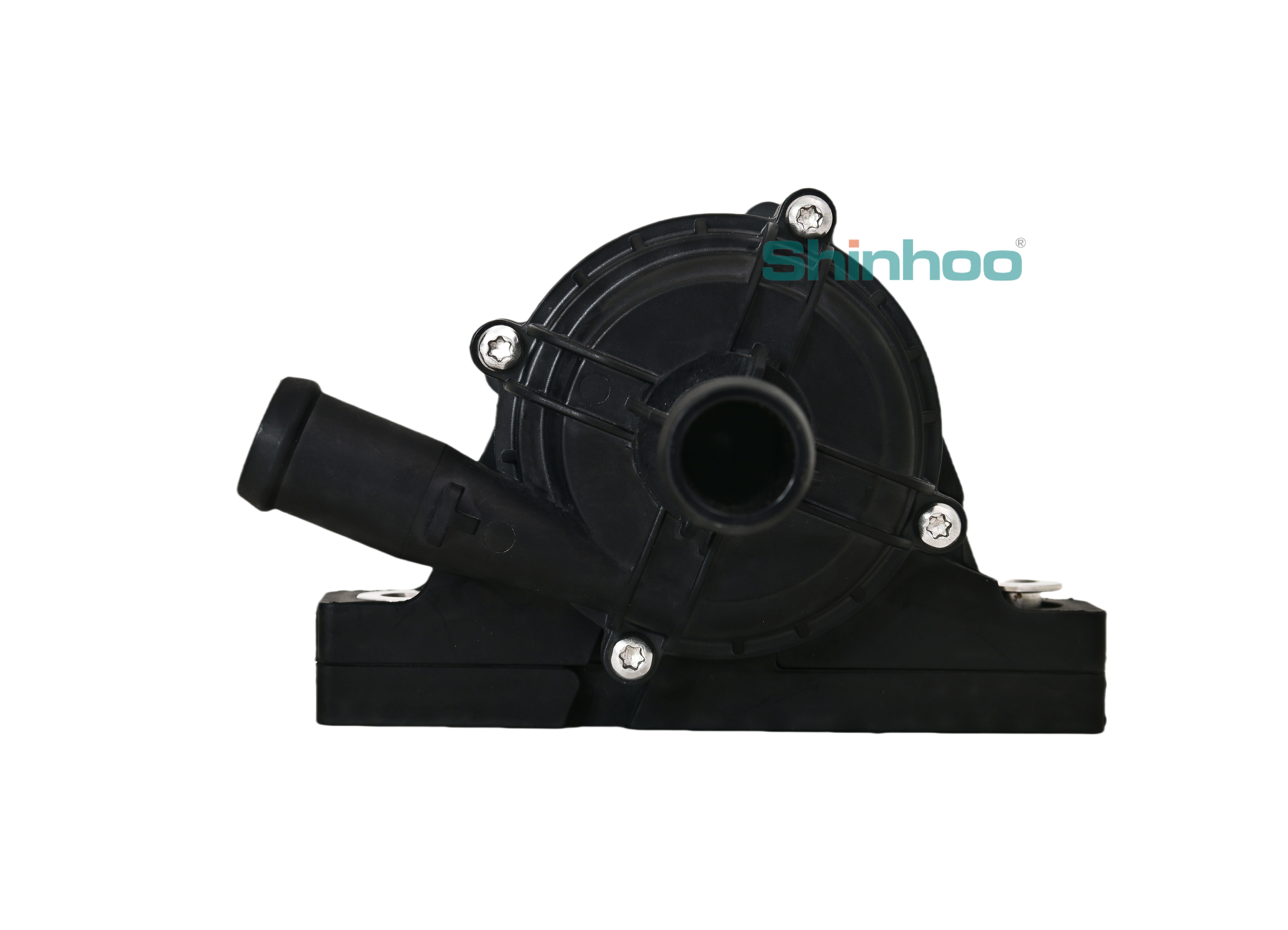

Electric Coolant Pump EPL60L-29
Classification:
Technical data
| Rated Flow and Head | L/min@8m |
| Rated Power | 75W |
| Voltage Range | 8～16V DC |
| Max. Flow | 40L/min |
| Max. Head | 8m |
| Speed | 1500～5900rpm |
| IP Class | IP67 |
Product Details
- Description
- Product Advantages
- Technical Data
-
- Commodity name: Electric Coolant Pump EPL60L-29
- Commodity ID: EPL60L-29
<table style="border-collapse:collapse; width:auto"> <colgroup> <col style="width:207.00pt" width="276" /> <col style="width:163.50pt" width="218" /> </colgroup> <tbody> <tr> <td x:str="">Rated Flow and Head</td> <td x:str="">L/min@8m</td> </tr> <tr> <td x:str="">Rated Power </td> <td x:str="">75W</td> </tr> <tr> <td x:str="">Voltage Range</td> <td x:str="">8～16V DC</td> </tr> <tr> <td x:str="">Max. Flow</td> <td x:str="">40L/min</td> </tr> <tr> <td x:str="">Max. Head</td> <td x:str="">8m</td> </tr> <tr> <td x:str="">Speed</td> <td x:str="">1500～5900rpm</td> </tr> <tr> <td x:str="">IP Class</td> <td x:str="">IP67</td> </tr> </tbody> </table>
Model EPL60L-29 Rated Flow and Head L/min@8m Rated Power 75W Voltage Range 8～16V DC Max. Flow 40L/min Max. Head 8m Speed 1500～5900rpm IP Class IP67 Application Field
Ambient Temperature: -40 to 110°C;
Conveyed Medium: Coolant (a mixture of water and ethylene glycol);
Medium Temperature: -40 to 100°C;
Power Supply Type: Vehicle Battery.
Functional Description
The water pump operates at a constant rated speed by default when no input signal is received;
PWM control function;
PWM feedback function;
Fault Diagnosis: Dry running, Stall/Loss of speed, Overcurrent/Phase line anomaly, Overtemperature, Signal error, Overvoltage, Undervoltage, etc.
-
Electric Water Pump applied to automotive thermal management systems
1.Compact structure
2.easy installation
3.flexible control
4.Reliable performance
5.low noise
6.high efficiency
7.long lifespan
-
key word:
cooling pump
coolant pump
automotive water pump
auto electric water pump
coolant pump for car
dc motor water pump
coolant recirculation pump
electric coolant pump 12v
| Model | EPL60L-29 |
| Rated Flow and Head | L/min@8m |
| Rated Power | 75W |
| Voltage Range | 8～16V DC |
| Max. Flow | 40L/min |
| Max. Head | 8m |
| Speed | 1500～5900rpm |
| IP Class | IP67 |
Application Field
Ambient Temperature: -40 to 110°C;
Conveyed Medium: Coolant (a mixture of water and ethylene glycol);
Medium Temperature: -40 to 100°C;
Power Supply Type: Vehicle Battery.
Functional Description
The water pump operates at a constant rated speed by default when no input signal is received;
PWM control function;
PWM feedback function;
Fault Diagnosis: Dry running, Stall/Loss of speed, Overcurrent/Phase line anomaly, Overtemperature, Signal error, Overvoltage, Undervoltage, etc.
