Electric Coolant Pump EPL160L-04
Classification:
Technical data
| Rated flow head | 30L/min@13m |
| Power | 160W |
| Voltage range | 16 ~ 32VDC |
| Maximum flow | 60L/min |
| Maximum lift | 13.2m |
| Noise | ≤50dB@0.5m |
| Communication mode | PWM |
Product Details
- Description
- Product Advantages
- Technical Data
-
- Commodity name: Electric Coolant Pump EPL160L-04
- Commodity ID: EPL160L-04
<table height="122" style="border-collapse:collapse; width:auto"> <colgroup> <col style="width:207.00pt" width="276" /> <col style="width:163.50pt" width="218" /> </colgroup> <tbody> <tr> <td x:str=""><strong>Rated flow head</strong></td> <td x:str="">30L/min@13m</td> </tr> <tr> <td x:str=""><strong>Power</strong></td> <td x:str="">160W</td> </tr> <tr> <td x:str=""><strong>Voltage range</strong></td> <td x:str="">16 ~ 32VDC</td> </tr> <tr> <td x:str=""><strong>Maximum flow</strong></td> <td x:str="">60L/min</td> </tr> <tr> <td x:str=""><strong>Maximum lift</strong></td> <td x:str="">13.2m</td> </tr> <tr> <td x:str=""><strong>Noise</strong></td> <td x:str="">≤50dB@0.5m</td> </tr> <tr> <td x:str=""><strong>Communication mode</strong></td> <td x:str="">PWM</td> </tr> </tbody> </table>
Model
EPL160L-04

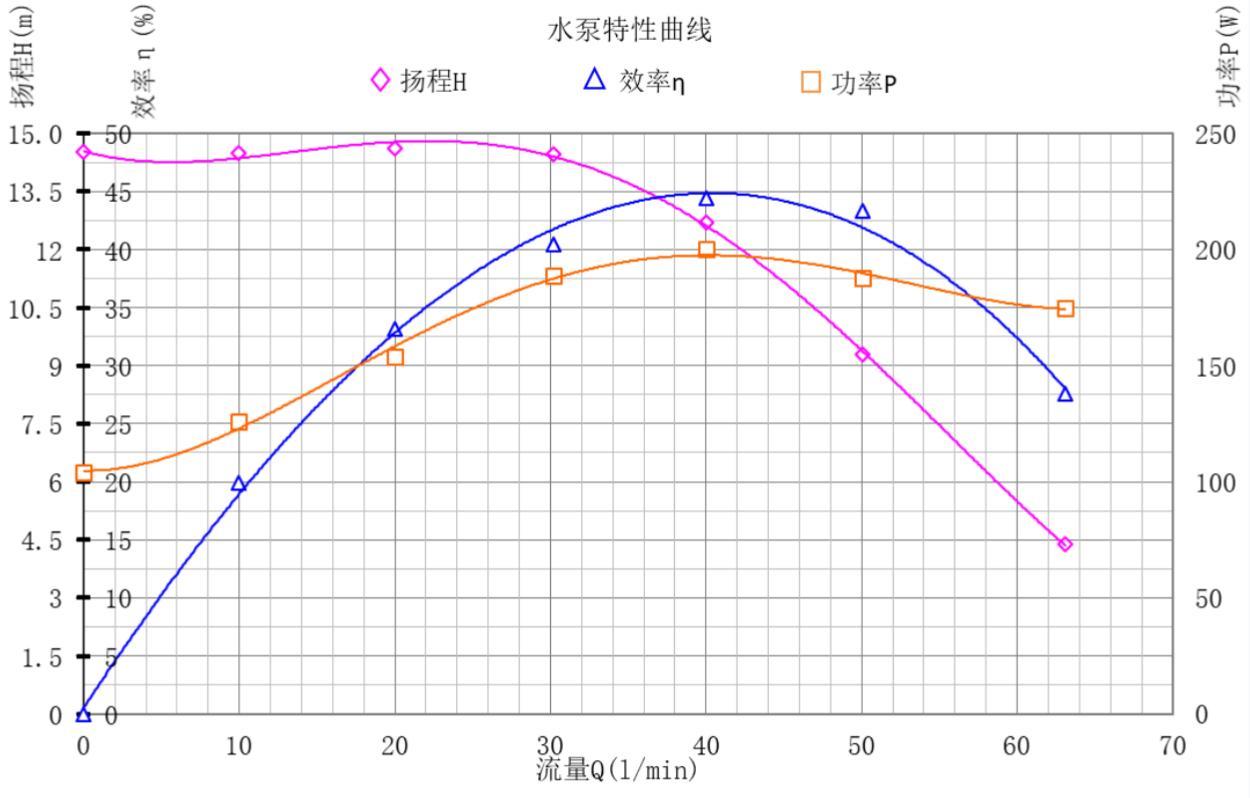

Rated Flow and Head
30L/min @ 14m
Rated Power
≤190W
Voltage Range
8～16V DC
Max. Flow
60L/min
Max. Head
14.5m
Speed
1280rpm～6400rpm
IP Class
IP67
Noise Index
≤50dB(A)
Application Field
Ambient Temperature: -40 to 110°C;
On-board water circulation cooling system;
Medium: Antifreeze(50:50/ Ethylene Glycol: Water);
Medium Temperature: -40 to 100°C;
Functional Description
1.When there is no input signal, pump will run at the rated constant speed by default in rated flow point.
2.Protection function: idling, over-voltage, under-voltage, over-current, locked-rotor, over-temperature, low-voltage power supply reverse connection protection.
3.PWM control function;
4.PWM feedback function.
-
Electric Water Pump applied to automotive thermal management systems
1.Compact structure
2.easy installation
3.flexible control
4.Reliable performance
5.low noise
6.high efficiency
7.long lifespan
-
key word:
Electric Water Pump
coolant pump
electric coolant pump
coolant pump for car
automotive electric coolant pump
Automotive coolant pump manufacturer
car electric water pump China
|
Model |
EPL160L-04 |
|
Rated Flow and Head |
30L/min @ 14m |
|
Rated Power |
≤190W |
|
Voltage Range |
8～16V DC |
|
Max. Flow |
60L/min |
|
Max. Head |
14.5m |
|
Speed |
1280rpm～6400rpm |
|
IP Class |
IP67 |
|
Noise Index |
≤50dB(A) |
Application Field
Ambient Temperature: -40 to 110°C;
On-board water circulation cooling system;
Medium: Antifreeze(50:50/ Ethylene Glycol: Water);
Medium Temperature: -40 to 100°C;
Functional Description
1.When there is no input signal, pump will run at the rated constant speed by default in rated flow point.
2.Protection function: idling, over-voltage, under-voltage, over-current, locked-rotor, over-temperature, low-voltage power supply reverse connection protection.
3.PWM control function;
4.PWM feedback function.
